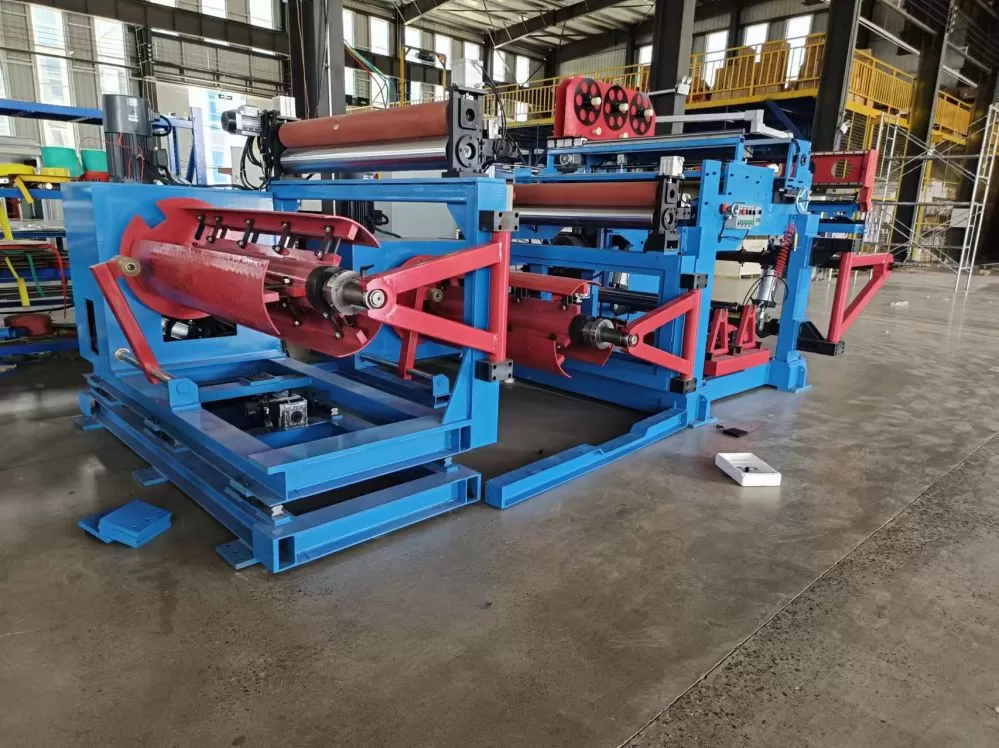

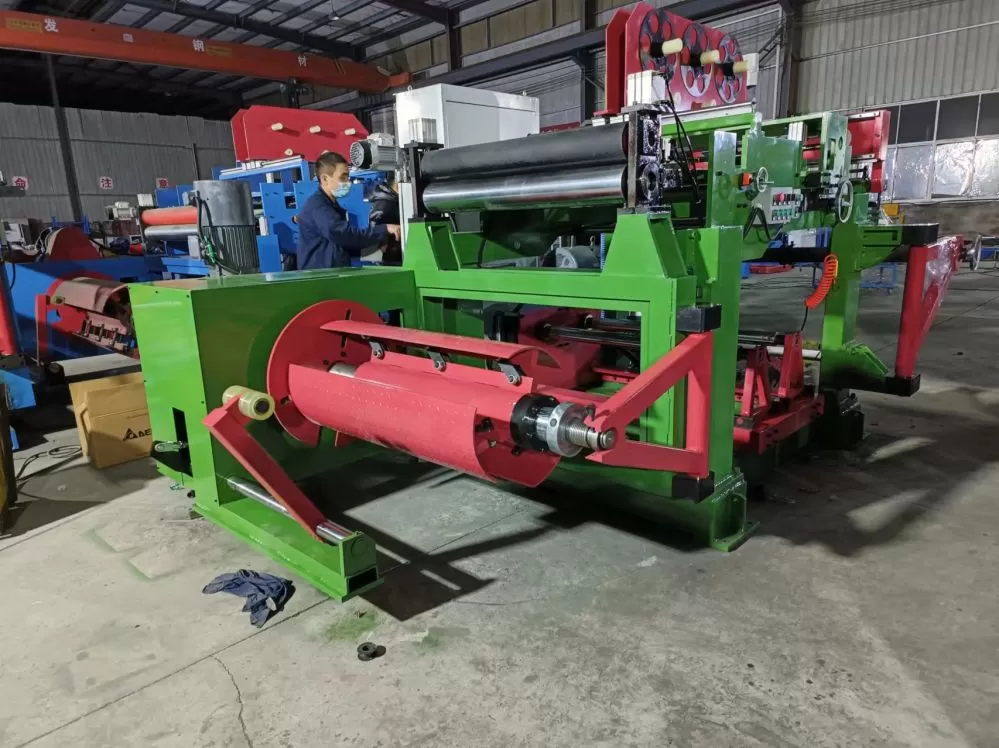

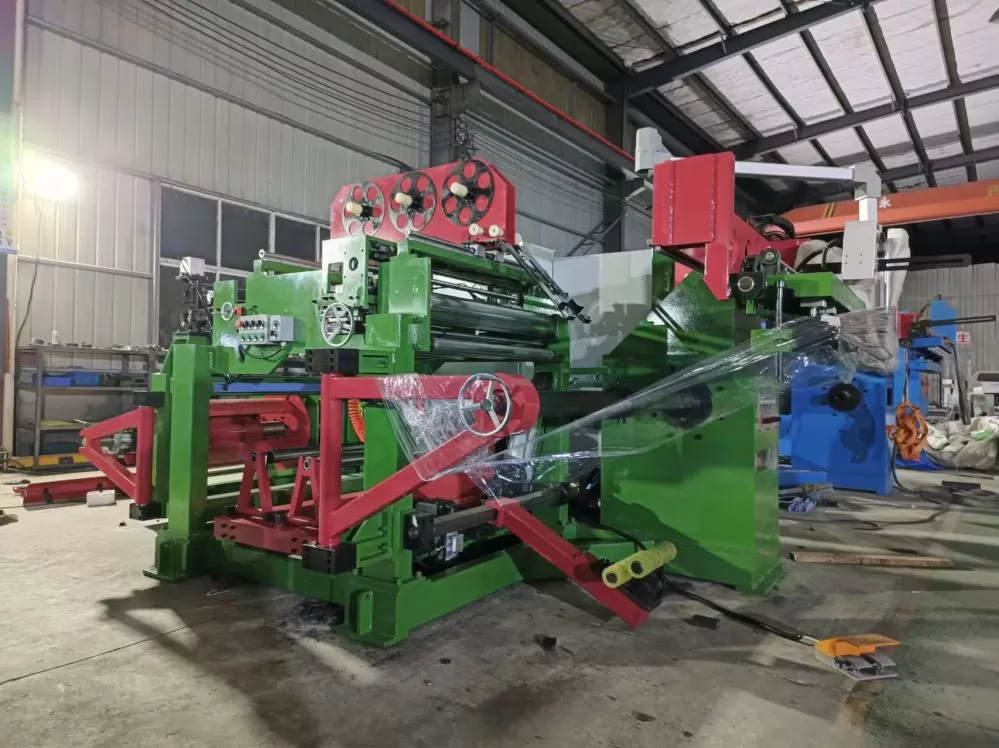

Transformer foil winding machine

Transformer   foil   winding    machine

Overview:

The foil coil is made of copper foil or aluminum foil of different thicknesses as the conductor, the wide-band insulating material is the interlayer insulation, and the narrow ribbon-like insulating material is the end insulation, and the winding is completed at one time on the foil winding machine to form the welding and outer surface wrapping of the inner and outer sides of the coil. This machine is an essential equipment for the production of such electrical product parts.

summery

Foil coi uses different thickness of copper or aluminum foil as the conductor,uses insulating materials of wide stripforlayerinsulation,take  insulating  materials of narrow strip as end

insulation,finish  winding  open  time  in  foil  winding  machine,form  foilcoil,meanwhile  complete the coi inside and outside of thelead welding and surface dressing

This machine is the necessary equipment for producing such appliances parts

Features

1. This foil winding machine combines the structural advantages of DuBoy in Switzerland and BR in Germany to design and complete, the appearance is atmospheric, practical is the first in China.

2. The tension of this foil winding machine adopts oil and gas mixed tension, which avoids the problem of large and small tension caused by unstable air pressure, and is the first in China.

3. The layer insulation has the function of jog correction, and there is no need to manually shake the handle.

4. The deviation correction adopts photoelectric induction, and the servo motor is the power. The deviation correction accuracy reaches ±0.4mm

5. The unique double cooling water pipe at the bottom of the welded pressing plate greatly reduces the cooling time.

Equipmentcharaceristics:

1.The foil winding  machine  combined  with  Tuboly AGin  accordancewith  the  advantages  andGermany  BR  structure  design  completed,the  atmosphere,practical  is  the  first  company  in  China

2.The tensionof the oil and gas mix foil winding machine tension,avoids all kinds of problems raises by unstable air pressure. It is thefirst company that solved these problems in China

3.Layer  insulation  is  a  pointing  correction  function,without  manual  shaking  handles.

4.Deviation  correction   uses   photoelectricsensor,servo   motor   power. Deviation   correction   accuracy of   ±0.4mm

5.Welding  clamp  at the  bottom  with  unique  dual  colingwater  pipes  greatly  reduces  the  cooling  time.
