Automatic winding machine
automatic winding machine

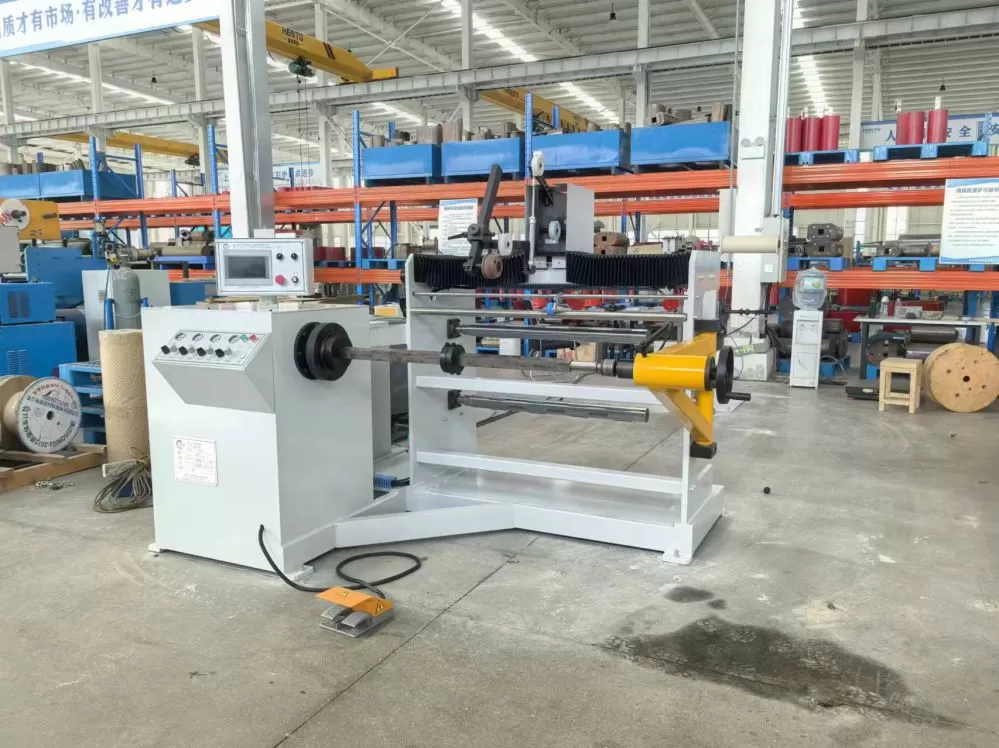

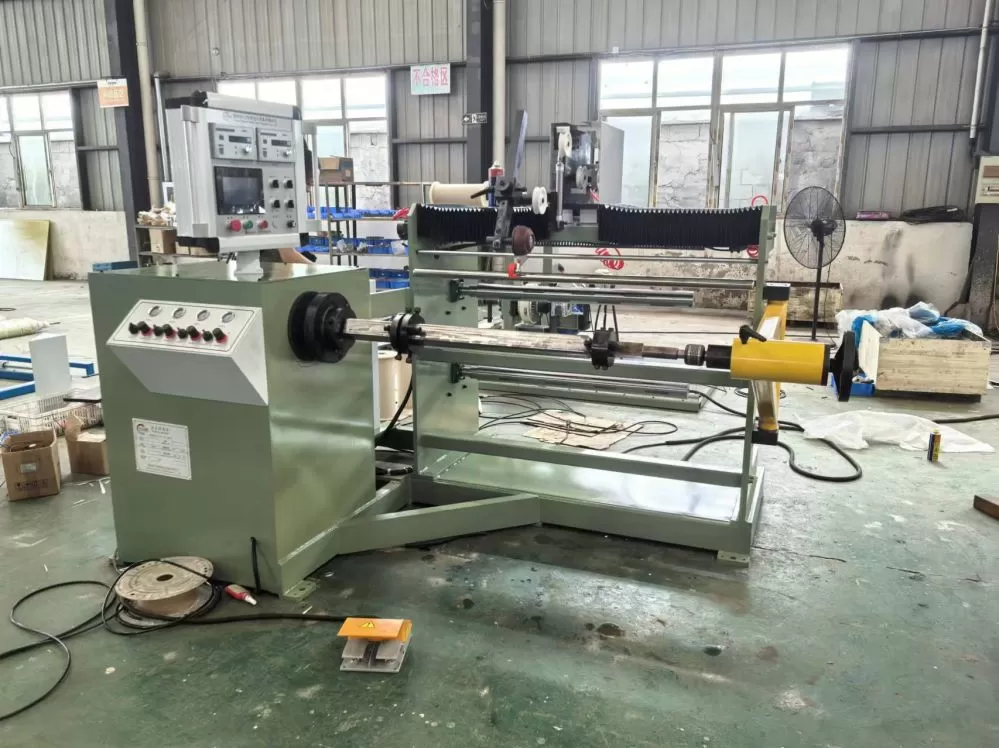

Overview: The automatic winding machine is suitable for coil winding of various small and medium-sized distribution transformers, transformers, reactor coils and similar processes.
Summary: type automatic winding machine is suitable for all kinds of smal and medium-sized distribution transformer、mutual inductor、reactor coil and similarly coil winding process
By the winding host
Automatic wiring devices

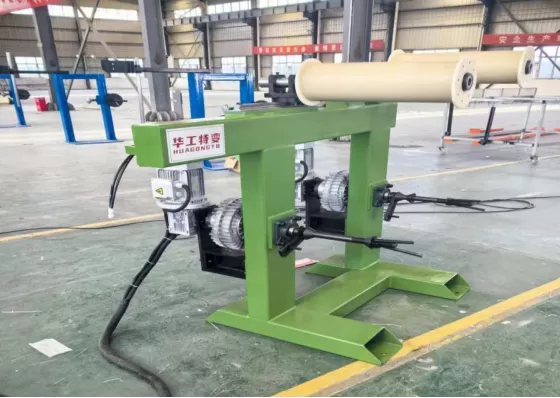

Layer insulation supply device Round wire, flat wire tension adjustable pay-off frame
Adjustable motorized round wire and lat wire tension Air-operated system
PLC control and servo motor system
PLC control and servo motor system touch screen human-machine interface
Touch screen and man-machine interface
Tags:
Technical parameter
Amorphous alloy special foil w
Automatic Wire Arrangement Mac
Low pressure foil winding mach
Low Pressure Foil Winding Mach
Main technical parameters:
Main technical parameters
1 | Centre height | 850 mm | 900 mm |
2 | Center distance around the axis | 0-800mm | 1000mm (cable range) |
3 | Work torque | max 1000 NM | max 1000 N/M |
4 | Around the spool size | 50×90 | 40×40×1200 |
5 | Work speed | 0—200 r/min | 0—240r/min |
6 | Speed method | Stepless frequency control of motor speed | Stepless frequency conversion speed regulation |
7 |
Applicable workpiece range Applicable scope of artifacts | Outer diameter (o.d.) ≤ 600mm Outer diameter(o.d.) ≤600mm | Outer diameter (o.d.) ≤750mm |
Inner diameter (i.d.) = 80mm Inner diameter(i.d.)≥80mm | Inner Diameter (I.D.) ≥80mm | ||
Axial height: H ≤750mm Axial height:H ≤750mm | Axial height: H ≤1000mm | ||
8 | Rectangular coil diagonal length | Max: 800 mm | Max: 1000 mm |
9 | Workpiece weight: Workpiece weight | Max:500kg | Max：650kg |
10 | Layer insulation quantity | 2 twos | 2piece |
11 | Machine power | About 5 kw | about7kw About 7 kw |
12 | Maximum set number of counter turns | 9999.9 | 9999.9 |
13 |
Wire specification | Flat wire: Max 3×12mm Flatwire: Max 3×12mm | Flat wire: Max 3×15mm Flatwire: Max 3×15mm |
Enameled wire: φ0.8mm—φ3mm Enameledwire:φ0.8mm—φ3mm | Enameled wire: φ0.8mm—φ5mm Enameledwire:φ0.8mm—φ5mm | ||
14 | Automatic cable arrangement Automatic line function | The minimum spacing of the adjusted wire diameter is 0.01mm Adjust the wire diameter minimum spacing of 0.01 mm | The minimum spacing of the adjusted wire diameter is 0.01mm Adjust the wire diameter minimum spacing of 0.01 mm |
15 | Power Powersource | 380v50HZ | 380v50HZ |
