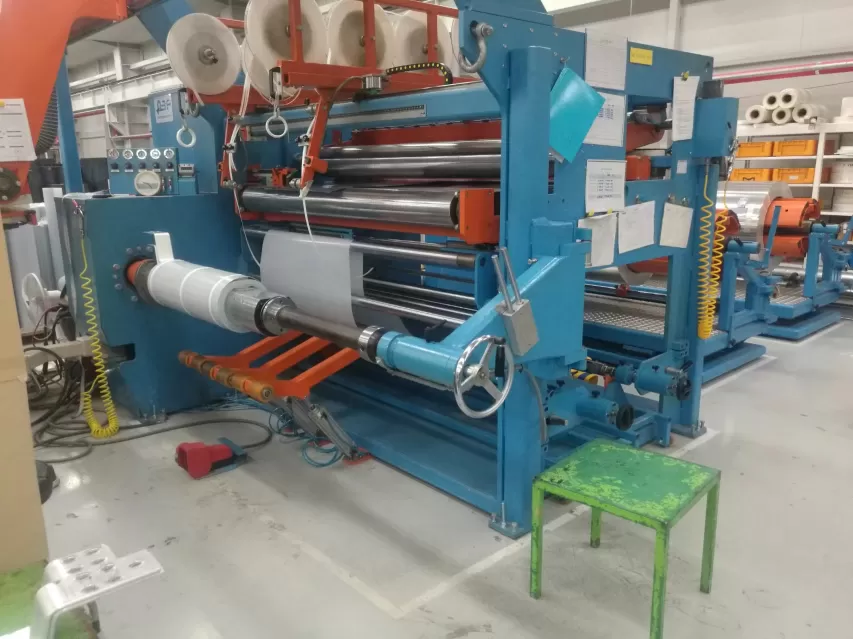

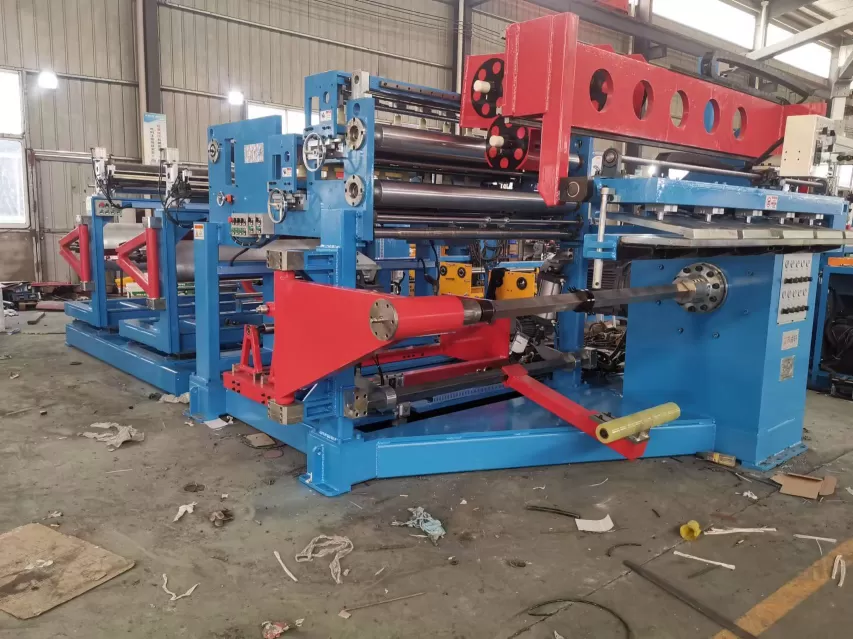

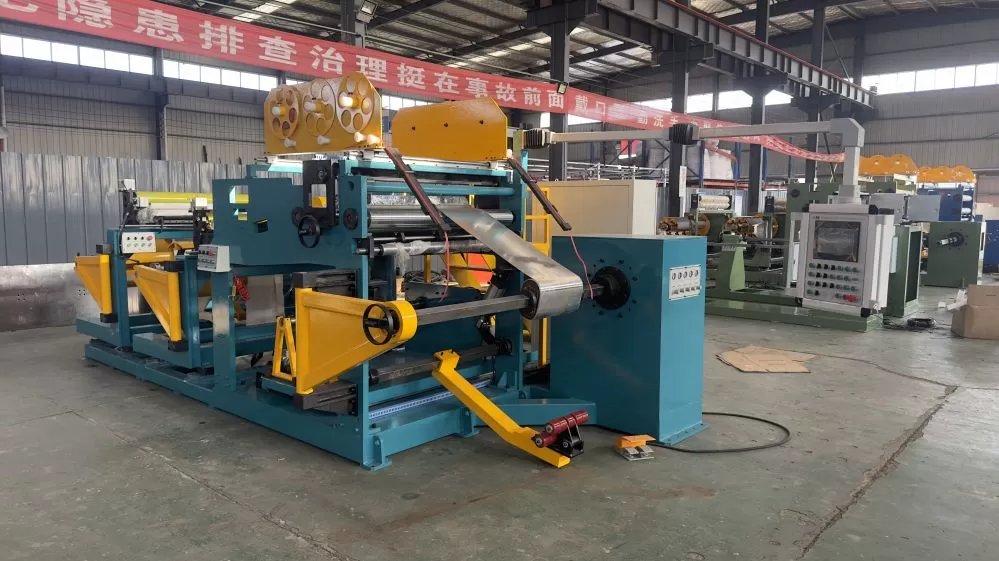

BRJ-1200 Transformer foil winding machine
BRJ-1200Transformer foil winding machine
Overview:
Foil coils are copper foil or aluminum foil of different thicknesses as conductors, wide band insulating materials as interlayer insulation, and narrow strip insulating materials For the end insulation, the winding is completed at one time on the foil winding machine to form the welding and outer surface wrapping of the inner and outer leads of the coil. This machine is produced for this Essential equipment for electrical product components.
summery
Foil coi uses different thickness of copper or aluminum foil as the conductor,uses insulating materials of wide stripforlayerinsulation,take insulating materials of narrow strip as end
insulation,finish winding open time in foil winding machine,form foilcoil,meanwhile complete the coi inside and outside of thelead welding and surface dressing
This machine is the necessary equipment for producing such appliances parts
Equipment features:Features
1. This foil winding machine combines the structural advantages of DuBoy in Switzerland and BR in Germany to design and complete, the appearance is atmospheric, practical is the first in China.
2. The tension of this foil winding machine adopts oil and gas mixed tension, which avoids the problem of large and small tension caused by unstable air pressure, and is the first in China.
3. The layer insulation has the function of jog correction, and there is no need to manually shake the handle.
4. The deviation correction adopts photoelectric induction, and the servo motor is the power. The deviation correction accuracy reaches ±0.4mm
5. The unique double cooling water pipe at the bottom of the welded pressing plate greatly reduces the cooling time.
Equipmentcharaceristics:
1.The foil winding machine combined with Tuboly AGin accordancewith the advantages andGermany BR structure design completed,the atmosphere,practical is the first company in China
2.The tensionof the oil and gas mix foil winding machine tension,avoids all kinds of problems raises by unstable air pressure. It is thefirst company that solved these problems in China
3.Layer insulation is a pointing correction function,without manual shaking handles.
4.Deviation correction uses photoelectricsensor,servo motor power. Deviation correction accuracy of ±0.4mm
5.Welding clamp at the bottom with unique dual colingwater pipes greatly reduces the cooling time.
Tags:
Technical parameter
Amorphous alloy special foil w
Automatic Wire Arrangement Mac
Low pressure foil winding mach
Low Pressure Foil Winding Mach

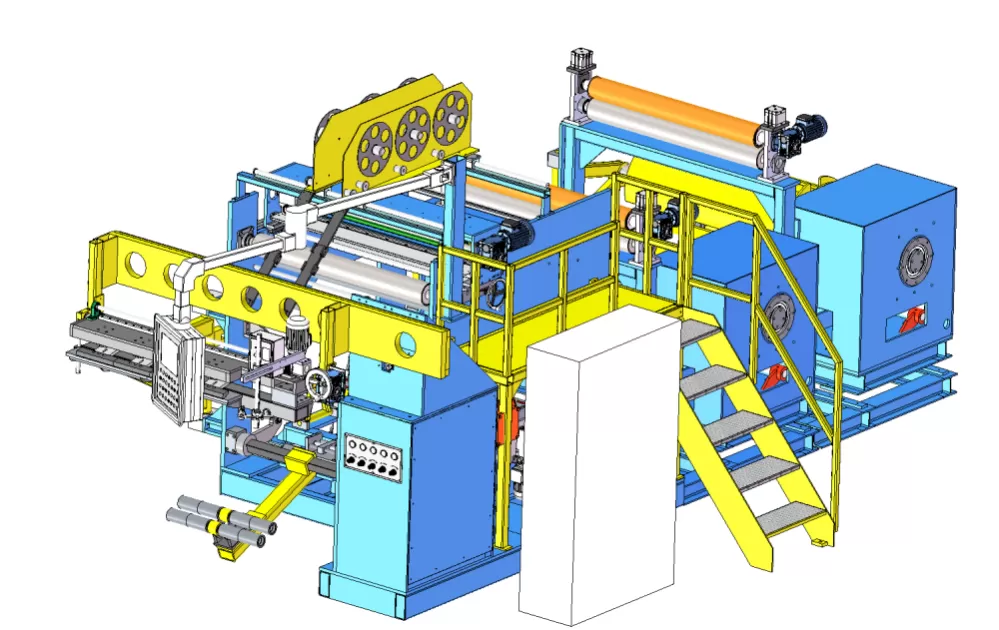

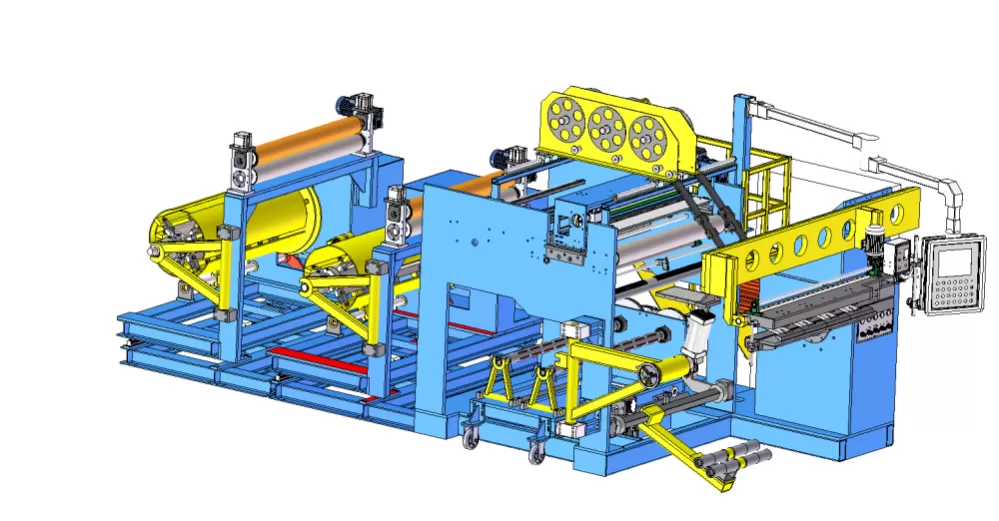

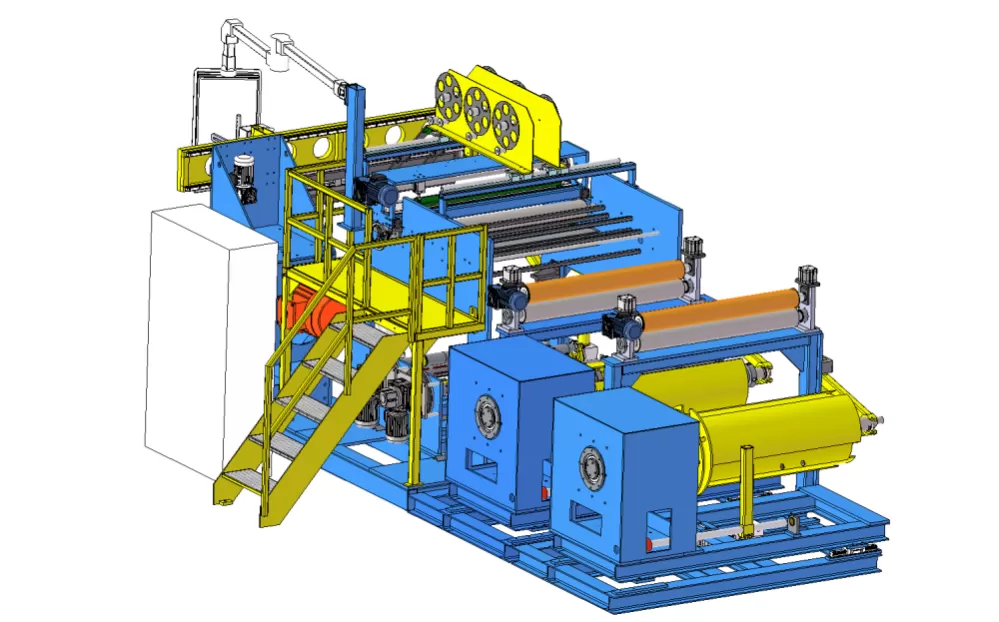

BRJ-1200-2 Main technical parameters of double-layer foil winding machine
serial number | Projects | Parameters | |
BRJ-12Type 00-2 | |||
1 | Coil processing range(mm) | ||
1.1 | Axial length(mm) | 150～1200 | |
1.2 | Axial effective length (including leads) (mm) | 1600 | |
1.3 | Coil outer diameter mm | Φ1000 | |
1.5 | The lead length of the copper and aluminum bar outside the coil is mm | 300 | |
1.6 | Coil form | Ellipse/Circle/Rectangle | |
2 | Coil material | ||
2.1 | Material | Copper foil, aluminum foil | |
2.2 | Width mm | 1200 | |
2.3 | Thickness mm | Copper foil: 0.2～2.5 Aluminum foil: 0.3～3.0 | |
2.5 | Coil outer diameter (Max) mm | φ1200 | |
3 | Uncoiler | Two sets | |
3.1 | Barrel length(mm) | 1250 | |
Open-coil telescopic form | Mechanical | ||
3.2 | The range of the carrier barrel expansion and contraction | φ440／φ520 | |
3.3 | The bearing barrel carries (Max) kg | 3000 | |
3.4 | Single/double tension | Double-layer maximum20000N.m | |
3.5 | Tension working pressure | 0～0.6Mpa | |
3.6 | Centering method (web correction) | Ordinary motor deviation correction | |
3.7 | Tension supply | Pneumatic tension | |
4 | Winding machine | ||
4.1 | Winding speed (stepless speed regulation) | 0～22r／min | |
4.2 | Spindle output working torque (Max) | About 18000N·m | |
4.3 | Winding power KW | 18.5 | |
4.4 | Speed-regulating type | Frequency conversion stepless speed regulation | |
4.5 | Winding shaft mm | 80*80 | |
6 | Layer insulated uncoiling device | ||
6.1 | layer insulated coil mounting shaft | 2cover | |
6.2 | Outer diameter of the layer insulating coil mm | ≤φ400 | |
6.3 | Layer insulating coil inner diameter mm | φ76 | |
6.4 | Layer insulating roll width mm | 350—1250 | |
6.5 | Unwinding shaft expansion method | Inflatable | |
6.6 | Layer insulation movement mode | Motorized jog correction | |
7 | End insulated uncoiling device | The minimum position of insulation at both ends is 300mm | |
7.1 | quantity | 2 sets on each side3piece | |
7.2 | The outer diameter of the end insulating coil is mm | ≤φ400 | |
7.3 | The inner diameter of the end insulating coil is mm | ＞φ56 | |
7.4 | End insulating coil width mm | ≤50 | |
8 | Guiding device | ||
8.1 | Deviation correction method | Jog correction | |
9 | Electronic control system | ||
10.1 | Count the number of digits | Five （0～9999.9） | |
